A viral image can make a practical design look baffling to millions of people at once. One mountain road loops across a dry slope, and viewers ask an easy question. Why did engineers not drive it straight up the hillside? The short answer is physics, but the fuller answer is better. Roads serve moving vehicles, changing weather, drainage, braking limits, and unstable ground. A photo flattens those problems into a neat shape, so the design can look foolish.
Once the slope, speed, and load return to the picture, the logic changes fast. The bends lengthen the route, reduce grade, and give drivers more control. They can also reduce excavation, drainage problems, and slope damage during construction. That same principle appears across engineering, often in plain sight. Bridge gaps, rounded airplane windows, grooved pavement, truck escape ramps, and giant tower pendulums can all seem strange. Yet each one solves a real problem that appears only under stress, movement, heat, vibration, or human error.
The Mountain Road Looks Wasteful, Yet the Curves Are the Real Safety Feature
At first glance, the winding road looks like a silly detour. In reality, the extra distance is the feature that makes it usable. A switchback stretches the climb or descent across a longer path. That reduces the grade vehicles must tackle at any moment. FHWA says switchbacks may be necessary in “mountainous areas with steep grades.” That line captures the basic issue. The hill may be brutally steep, but the road itself cannot be. A University of British Columbia design lesson explains the idea even more plainly. It says a switchback is used when the ground slope exceeds the allowable road grade. In other words, the terrain may rise sharply, but the road must rise gently enough. Without those turns, the climb could exceed traction limits for cars and trucks.
Why?!?’ But there must be a reason for it. pic.twitter.com/2P1IPsI7TT
— Dr Mouth Matters (@GanKanchi) March 11, 2026
The descent could also overload brakes and reduce steering control in dangerous ways. A straight road might look quicker on paper, yet it could become hazardous in routine use. The curve itself also needs careful shaping. FHWA guidance says sharp switchback curves should have a reduced gradient to help braking and control. UBC teaches the same point in more direct classroom language. Grades in switchbacks should be reduced to minimize braking demand and maximize vehicle control. That matters especially on descents, where gravity keeps adding speed. A driver who enters a steep straight line too fast has fewer chances to recover. A turn can force lower speeds before the vehicle reaches truly dangerous momentum. Construction adds another layer of logic.
A straight cut across a steep mountainside often demands massive excavation and heavy slope stabilization. It can also expose more raw earth to runoff and later erosion. By following contours, engineers often reduce how much ground they must disturb. That can lower costs and shrink the amount of retaining work. Even when the road becomes longer, the overall project may become safer and more practical. It is a compromise shaped by gravity, vehicles, terrain, water, long-term maintenance, and the limits of construction crews. The viral image works because it hides most of those forces. A viewer sees only distance and assumes that shorter must mean smarter. Engineers see grades, friction, drainage, cut slopes, vehicle behavior, and repair costs. They also know that roads must work for loaded trucks, tired drivers, and wet conditions.
The curve accepts those realities instead of pretending they do not exist. It also helps keep heavy vehicles within limits that ordinary drivers rarely consider. That is why mountain roads so often choose patience over directness. In steep terrain, the longer road can be the safer, cheaper road. Straight lines are not always smarter. That design also helps emergency services, buses, and freight operators use the route more reliably. During storms, a road with manageable grades can remain safer than a brutally direct climb. Maintenance crews also gain better access to drains, barriers, and damaged sections after rockfalls. The road may look inefficient in a frozen image, yet in daily use it reflects a far more intelligent compromise. For steep terrain, that matters greatly.
The Gap in a Bridge Is Not Bad Work, Because Bridges Cannot Stay Perfectly Still
Many drivers notice a bump near a bridge end and assume something failed. In many cases, that bump sits over an expansion joint doing exactly what it should. ADOT explains that expansion joints let concrete expand and contract “without cracking.” That phrase is plain, and it is accurate. Concrete and steel expand and contract as temperatures change through the day and year. Bridges also respond to traffic loads, settlement, shrinkage, ice, and ordinary structural movement. If the structure had nowhere to move, the stress would go somewhere less forgiving. FHWA material explains the same issue in structural terms. Its bridge preservation case study says joints allow expansion and contraction from temperature changes, beam end rotation, and other loading.
It also warns that blocked movement can force loads into elements never designed for them. That is the hidden logic behind the visible gap. What looks unfinished is actually a controlled allowance for motion. Engineers accept that movement will happen and decide where it should happen safely. A narrow opening is therefore better than uncontrolled cracking elsewhere in the bridge. This idea can feel counterintuitive because people expect bridges to behave like fixed stone. Modern bridges do not behave that way, and engineers never assume they will. Materials move with heat, and structures flex under repeated loading. Bearings rotate, decks shift, and supports respond over time. ADOT explains that larger bridges may need wider joints to handle greater movement.
It also notes that the roughness some drivers notice is usually not a safety issue at posted speeds. So the small bump can be evidence of proper accommodation, not neglect. There is also a maintenance lesson hidden inside the joint. FHWA notes that when joints fail and leak, the damage can spread to beam ends, bearings, and substructures. That means the joint protects not only motion, but also durability. Engineers are choosing where wear should occur and where water should stay out. The detail may look minor, yet it affects the life of the entire bridge. A seamless surface might photograph better for a moment, but over time, it could create worse cracks and worse repairs. Good bridge design often means allowing tiny imperfections to prevent major failures. The same logic appears in buildings, pavements, pipelines, and rail systems.
Designers rarely ask whether materials will move, because they know movement is unavoidable. Instead, they ask how to guide that movement safely and predictably. The bridge joint is a visible answer to that question, and a quiet lesson in humility. So the next time a bridge deck shows a gap, it helps to remember this. The smoothest-looking bridge is not always the smartest built bridge. The opening is not proof that engineers forgot something important. It is proof that they remembered something most people never see. Good joints spare a bridge from fighting itself every season. Season after season, that small joint absorbs motion that would otherwise spread stress into concrete, bearings, and supports, quietly extending service life while reducing the chance of costly structural damage.

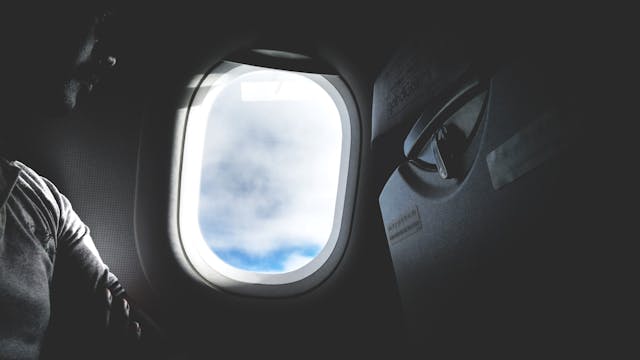

Airplane Windows Are Rounded Because Sharp Corners Concentrate Stress
Airplane windows look ordinary today, yet their shape came from disaster. Early jet aircraft taught engineers that geometry can decide how stress travels through metal. The Federal Aviation Administration’s review of the de Havilland Comet says high stress concentrations formed at squarish window corners. The FAA says modern windows work because “stress flows freely around the curved edges.” Abrupt corners do the opposite and create localized peaks in stress. That is why modern passenger windows use rounded corners or oval shapes. The design is a structural correction, not an aesthetic preference. The Comet failures remain one of aviation’s clearest lessons in fatigue. Cabin pressurization repeatedly loaded the fuselage during every flight cycle. FAA material notes that testing and later investigation traced the failure to the window corner regions.
The review says the test fuselage failed at a corner of a squarish escape hatch window. It also says production aircraft formed fatigue cracks near those corners far sooner than expected. Those details matter because fatigue rarely announces itself with a dramatic warning. Small cracks can grow quietly under repeated loading until the remaining structure gives way. Smithsonian Air & Space offers a concise summary of the design fix. It explains that oval or rounded corner windows help prevent metal fatigue by distributing stresses more effectively. That single change seems modest, yet its importance is hard to overstate. Engineers did not round the windows because curves looked modern or luxurious. They rounded them because repeated pressurization punishes sharp geometric discontinuities. Once that failure mechanism was understood, the new shape became an obvious safety choice.
The change is a powerful reminder that tiny details can control the life of much larger systems. The lesson reaches far beyond aircraft cabins. Engineers often round edges, soften openings, or add fillets where repeated loading can concentrate stress. To an outsider, those moves can look cosmetic or overly cautious. In many cases, they are direct responses to crack initiation and fatigue growth. Components under cyclic loading do not care about visual simplicity. They care about how forces flow through material, around holes, and past corners. The rounded airplane window became famous because the alternative had already revealed its cost. History turned a design preference into a non-negotiable safety rule. That broader lesson also explains why many “odd” details survive for decades.
Once engineers discover a geometry that spreads the load more safely, they tend to keep it. The public may only notice the shape, while the designer remembers the failure behind it. Rounded airplane windows are one of the clearest examples of that pattern. They look calm because the hard argument ended years ago. Modern passengers inherit a safer shape because earlier engineers learned from tragedy. The dangerous version already failed first. So the window shape is not an arbitrary flourish added after the real work. It is the real work, expressed through form, history, repeated proof in service, and hard lessons learned too late. The rounded shape quietly carries that memory on every flight.
Grooved Pavement and Runaway Ramps Look Harsh, Yet They Are Built for Mistakes
Some road features seem almost impolite by design. Rumble strips interrupt a smooth surface with noise, vibration, and a sudden jolt. That roughness is intentional because comfort is not the goal in that moment. FHWA says rumble strips exist to “alert drivers through vibration and sound” after lane departure. The agency also describes shoulder and centerline rumble strips as proven safety countermeasures on rural two-lane roads. They exist because tired, distracted, and drifting drivers do not always notice a line before they cross it. The numbers explain why agencies keep using them. FHWA guidance reports major reductions in serious run-off-the-road and head-on crashes where these treatments are installed. That outcome matters because roadway departure crashes often happen fast and leave little room for recovery.
A painted line alone can be missed in darkness, fatigue, or distraction. A rumble strip adds a physical warning the body cannot ignore easily. It turns the pavement itself into an alarm system. What looks ugly from above can therefore become lifesaving at highway speed, especially during a bad second. Truck escape ramps make the same point in an even starker way. A long gravel lane climbing away from a steep downgrade can look wasteful or abandoned. In reality, it is a planned route for a specific emergency. A federal transportation report says many states provide escape ramps to reduce runaway truck hazards on long, steep downgrades. The report explains that these ramps are used by vehicles that have lost braking capability and are out of control. They allow the driver to regain control by slowing or stopping at an acceptable deceleration.
It is a serious emergency infrastructure, not a decorative roadside space. Both features share an important design philosophy. Good transport engineering never assumes perfect attention, perfect brakes, or perfect judgment. It builds in chances for recovery when people and machines perform badly. A rumble strip buys a drifting driver a second chance. An escape ramp gives a runaway truck somewhere better to go than a line of traffic. Each feature may look harsh, bulky, or visually untidy. Yet both exist because roads serve real people under stress, fatigue, panic, and mechanical failure. A system that ignores those conditions may look cleaner, but it will protect fewer lives. That is why these details often surprise the public. Many people expect infrastructure to reflect ideal behavior and elegant shapes.
Engineers often design for bad weather, bad timing, and bad moments instead. The result can look blunt because the problem itself is blunt. When a vehicle leaves its lane, or when a truck’s brakes fade on a mountain descent, beauty stops mattering. Recovery becomes the only thing that matters in that moment. Grooves and ramps are physical acknowledgments of those truths. They may look severe, yet they reveal a mature kind of thinking. The road does not flatter the eye first. It protects human bodies before it pleases the eye. That is why these features keep appearing on serious roads: they prepare for human limits before those limits turn deadly.
Giant Pendulums in Towers Look Absurd, Yet They Help Buildings Stay Calm
One of the strangest engineering details sits inside some very tall buildings. Near the upper floors, a massive suspended weight may hang in plain view. To visitors, it can look like a sculpture or an expensive stunt. In practice, it is a tuned mass damper, and it has a serious job. Purdue engineering notes define a tuned mass damper as a mass, spring, and damper used to reduce dynamic response. Purdue says dampers exist “to limit the motion of the structure” during sway events. That explains the giant moving weight. Tall buildings do not need to be close to failure for motion to matter. Wind can produce sway that disturbs occupants, affects equipment, and adds repeated structural demand.
The basic idea sounds simple, yet the effect can be profound. When the building moves at a troublesome frequency, the damper moves out of phase. That opposing motion helps dissipate energy and reduce the amplitude people experience. Engineers, therefore, do not always fight motion by making a structure infinitely rigid. Sometimes they allow controlled motion and then manage it intelligently. This approach appears in many fields, from vehicle suspension to vibration isolation in machinery. In towers, the strategy can look especially dramatic because the device is so large. The public sees a giant hanging mass and wonders why it is there. Engineers see a practical tool for comfort, safety, and long-term performance. Research published through the American Society of Civil Engineers says tuned mass dampers increasingly reduce motion during common wind events.
Read More: Engineering Students Create Waterproof and Lightweight Arm Cast with Aim to Replace Plaster Casts
Purdue’s examples describe major systems installed in towers such as Boston’s John Hancock Tower and New York’s Citicorp Center. Those dampers were designed to cut sway significantly and improve performance under wind loading. This idea also shows how advanced engineering can look counterintuitive. A skyscraper may feel permanent and still, yet it is a dynamic object under changing loads. Wind pushes, the structure responds, and occupants notice acceleration long before collapse becomes the issue. The damper addresses the real operating condition instead of an imaginary frozen building. It accepts that some movement is normal and then works to reduce the worst of it. That balance can improve comfort without demanding impossible stiffness from the whole tower. That is a very modern design instinct.
Instead of denying a force, the design measures it, predicts it, and answers it with another controlled motion. Once that logic becomes visible, the pendulum stops looking ridiculous. It becomes another example of engineering that seems odd only in a still image. The same pattern runs through the winding road, the bridge gap, the rounded window, and the grooved pavement. Each detail addresses a force most people do not see directly. In towers, that hidden force is vibration and sway. The big suspended mass is therefore not excess, and it is not theater. It is a response to a motion that cannot be ignored. When the building moves, the damper moves too, and that strange sight becomes a form of structural calm.
A.I. Disclaimer: This article was created with AI assistance and edited by a human for accuracy and clarity.
